Provide Professional Pharmaceutical Machinery Solutions
Packing Machine

Electronic Counter

electronic tablet counting machine , hard and softgel capsule counting machine , pill counting machine , coin candy counting machine ,tablet counter , capsule counter , pill counter

Product Description

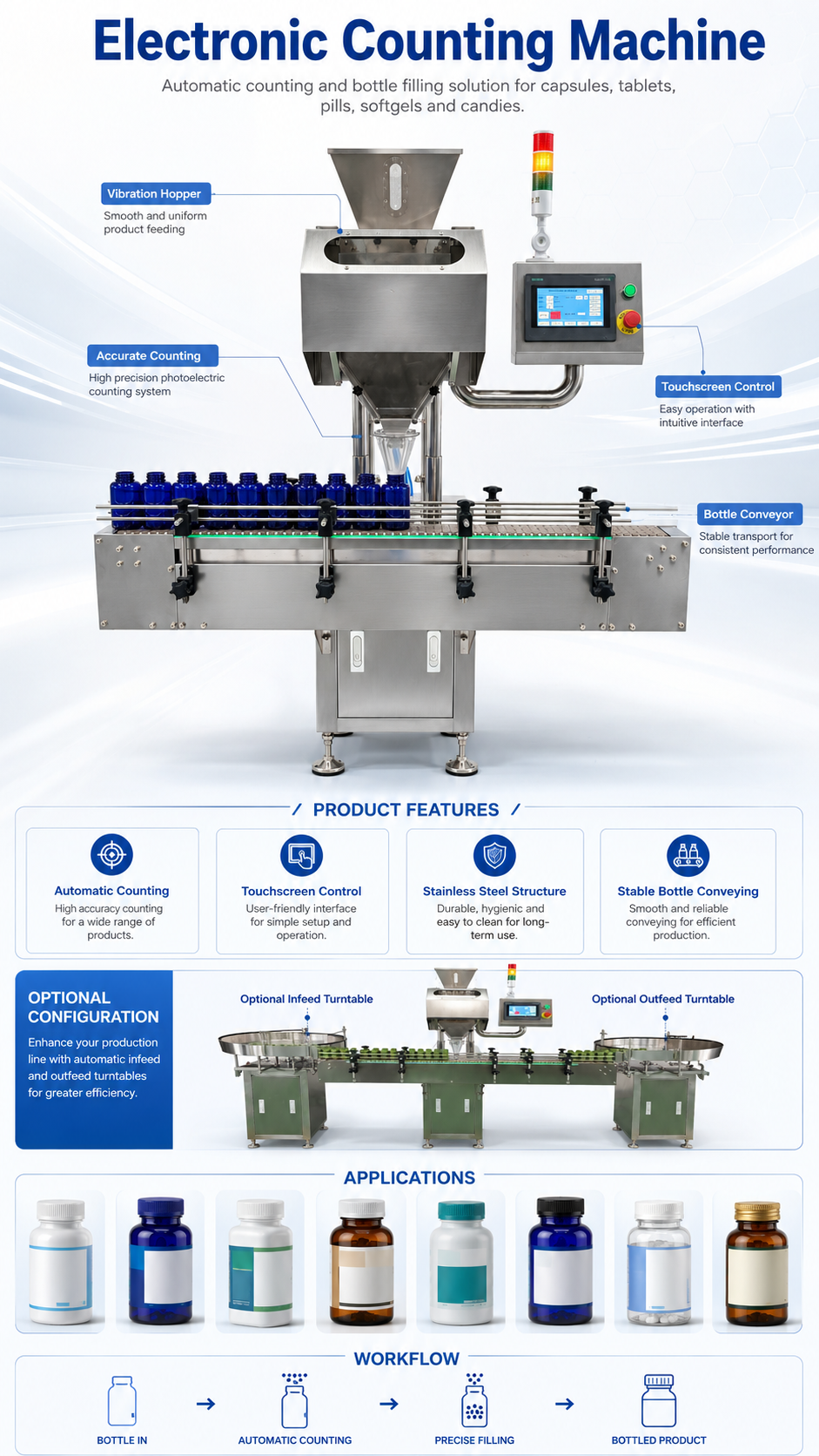

Electronic counting machines are our company’ s star products, which is a stable .reliable electronic products that was successfully developed through repeated experiment after a long time research . Its core part and control system adopt imported original accessories. It mainly consists of such structures as hopper, vibration transmission , photoelectric sensor. dust storage box, human-computer interface.

Product Specifications

Model JF-8A JF-12A JF-16A JF-24A JF-32A JF-48A
JF-8B JF-12B JF-16B JF-24B JF-32B JF-48B
Applicable Material Model A: 0~5#capsule、soft capsule、05.5-12 normal tablets, special shape tablets、coating tablets、
Model B: 00~5# capsule、soft capsule, v
Capacity 10-30BPM 20-40BPM 20-80BPM 20-90BPM 40-120BPM 40-150BPM
Working range Adjust from 2-9999 per bottle
Power supply 220V/50HZ/0.6KW 220V/50HZ/0.8KW 220V/50HZ/1.2KW 220V/50HZ/1.5KW 220V/50HZ/2.2KW 220V/50HZ/2.5KW
Overall dimension 1360M 350* 1650mm 1360M 350* 1650mm 1360* 1350* 1650mm 1760* 1350* 1650mm 2160* 1450* 1650mm 2160, 1350* 1650mm
1360* 1650* 1650mm 1360* 1650* 1650mm 1360* 1650* 1650mm 1760*1650*1650mm 2160* 1650* 1650mm 2160* 1650* 1650mm
Weight 250kg 320kg 420kg 450kg 550kg 620kg
300kg 380kg 550kg 580kg 620kg 680kg
Remarks 1.Capacity is subjected to the type and the size of the bottles and tablets, as well as the quantity filled per bottle; 2. BPM=Bottles per minute

Our Certification

With advanced technology and continuous R & D investment, our products have obtained a large number of patent certificates , CE certificate etc.

  • certification01
  • certification01
  • certification01
