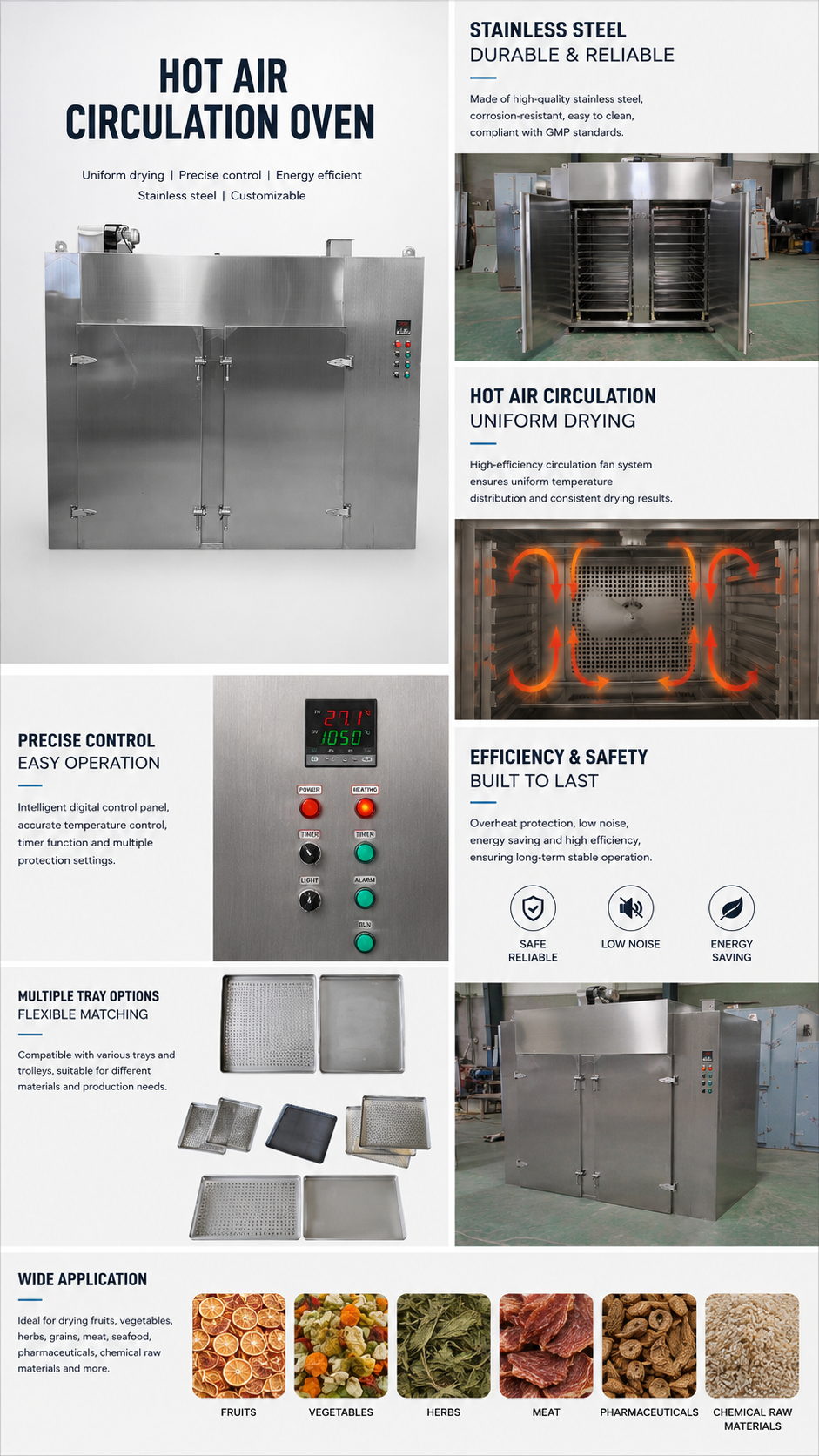

Hot Air Drying Oven

CT SERIES hot air circulation ovens are all axial fan, equipped with automatic constant temperature control system, and equipped with computer control system for choice. Thermal efficiency of about 70%, it is the use of steam or electricity as the heat source, with axial flow fan heat exchanger convection heat transfer way to heat the air, hot air laminar flow through the drying tray and materials for heat transfer. Fresh air is replenished from the air inlet, and waste moist and hot air is discharged from the wet outlet. Fresh air is constantly replenished and moist and hot air is constantly discharged, so as to maintain the appropriate relative humidity in the oven. The CHARACTERISTIC OF THIS SERIES OVEN IS THAT PART OF the hot air CIRCULATES IN THE OVEN, and THE whole circulation process is closed, so as to enhance heat transfer and save energy.

Universal drying equipment, wide adaptability, widely used in pharmaceutical, chemical, food, light industry, heavy industry and other industries of materials and products heating curing, drying dehydration. Such as: raw drug, raw medicine, Chinese medicine decoction pieces, powder, granule, infusion, size honey pill packaging bottles, pigments, dyes, dehydrated vegetables, dried fruits and melons, sausage, plastic resin, electrical components, baking paint, etc.

Main Features :

• Heating heat source with steam, electricity, electric steam, for users to choose.
• The use of temperature, steam heating 50-140℃, the highest 150℃, electricity temperature 50-300℃.
• Equipped with automatic control system and computer control system for users to choose.
• Commonly used steam pressure 0.2-0.8mpa (2-8kg/cm2).
• With electric heating, according to type ⅰ calculation of 15KW, practical 5-8W /h.
• Drying dish size: 450×640×45 (mm)
