Integrated Tablets capsules pills Automatic Packing Line [high-speed Line]

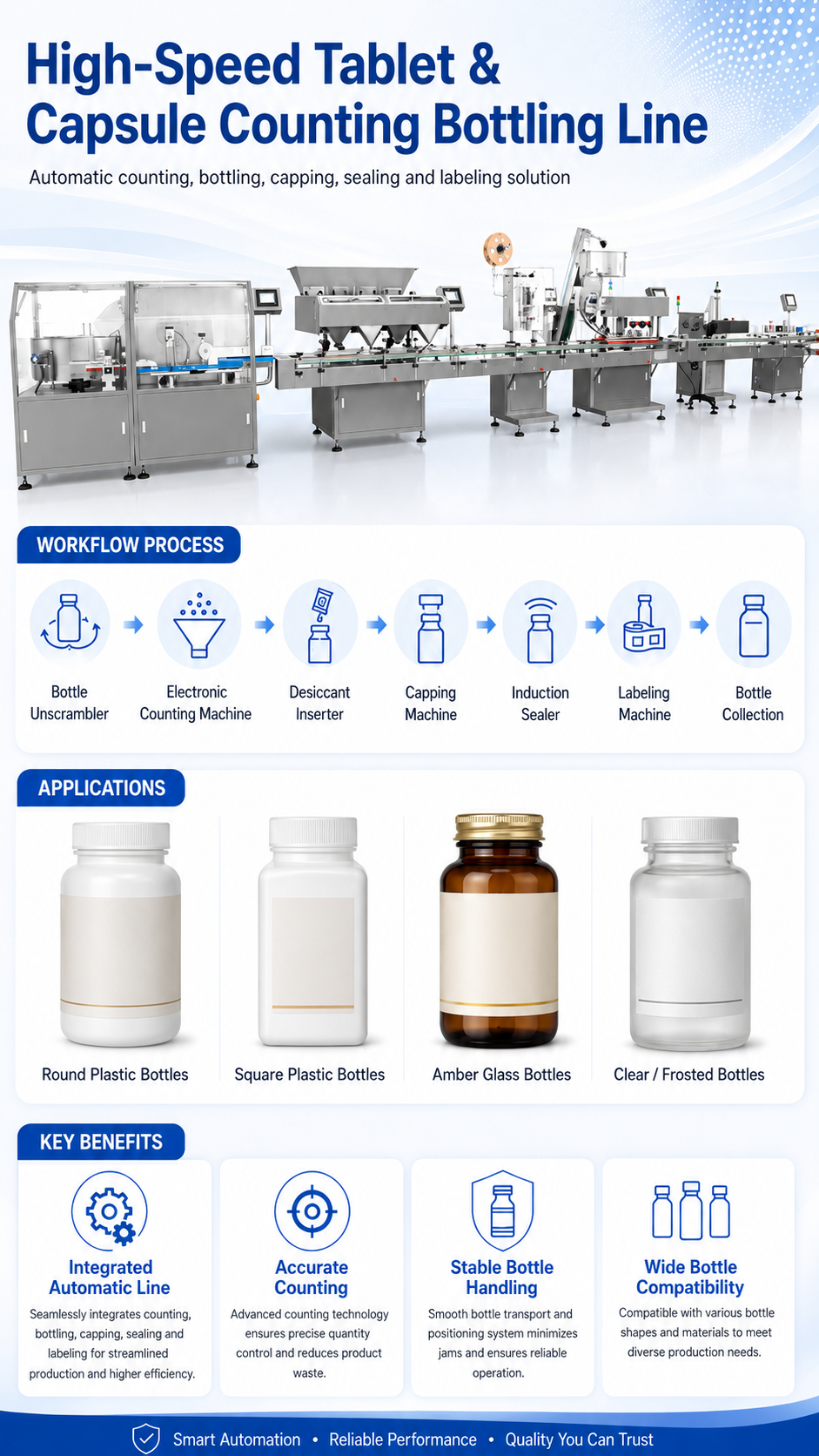

JF-A200-32 Grain counting bottling packaging linkage production line is made up of JF-A200 round bottle unscramble、JF-32 electronic counting machine、JF-C120 automatic desiccant inserter(cotton inserter or paper inserter), JF-D903 automatic capping machine、JF-M2 induction sealer、JF-T1 round bottle side face labeller (coding machine).

Get a Quote Contact Sales

Our Experience
9+
YEARS OF EXP
Quality Assurance

Video inspection provided before delivery
Fast delivery

Standard machines in stock and various shipping options
Support warranty

12 months from delivery date

Product Description

Wide applicability, with our original anti-dust technology, it can be used for tablets( including abnormal tablets), capsules, gels(including abnormal gels, transparent gels and opaque gels) pearls and most kind of tabloids.
High-intelligence: intelligent design of each machine with interactive operating multi-language panel. Can save 10-20 kinds of different operating parameters and easy to load for different products. Self-diagnose .displays errors and make alarms. Well cooperation between each machine and in the whole line.
High efficiency. Take purposed to operate, easy to operate, to adjust, to clean and to maintain. Low working cost, low maintain cost. 3 workers will be enough to operate.
Small in size (innerpackingroom30 max) and low cost in power.
Control system: adopting PLC and touch screen control.

Product Specifications

Model	Name	Applicable Products	Capacity(bottles/min )	Power Supply	Power	Air consumption (m3/min)	Net Dimension(mm )
JF-A200-32	Tablets capsules pills Automatic Packing Line	000-5# capsules,soft gels ,5.5-20mm diameter normal tablets ,3-20mm diameter pills special shape tablets ,coating tablets and some other solid granules	100 bottles/min (decided by the type and size of the bottle and raw materials as well as the quantity filled per bottle）	220V/50HZ	8KW	1.5	11500*2500

Our Certification

With advanced technology and continuous R & D investment, our products have obtained a large number of patent certificates , CE certificate etc.
