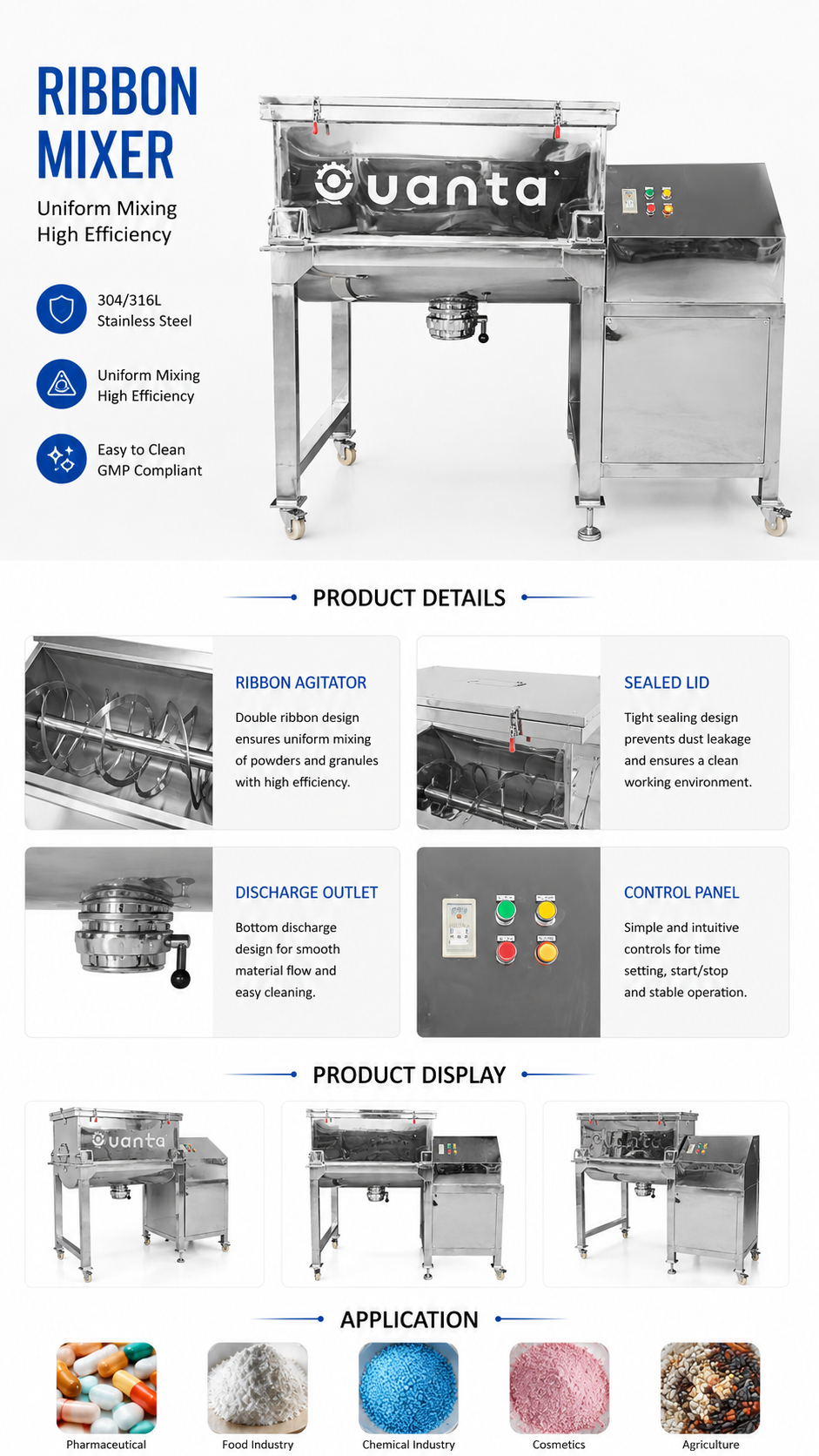

Square Tube Type Ribbon Mixer

ribbon mixer , ribbon blender , double helix ribbon type mixer , powder and liquid mixer , wet powder blender machine , dry powder mixing machine , spice mixing machine , flour mixing machine

Product Description

The ribbon mixer is generally used for mixing of viscous or agglomerative powder and mixing of liquid and paste materials added to the powder. At the same time, because of the characteristics of difficult cleaning of viscous materials, it is suitable for mixing occasions with large yield and infrequent replacement of varieties.

Working Principle

The machine is composed of mixing groove, spiral stirring blade and transmission parts. The spiral blade is generally made of two layers. The outer spiral collects the material from both sides to the center, and the inner spiral shunt the material from the center to both sides, so that the material forms convective mixing in the mixing groove, so as to achieve high uniformity mixing.

Product Specifications

Model Dimension (MM) Total Volume Max.loading capacity Rotation Speed Weight Power
L W H L KG Rpm/min KG KW
WLDH-300 1915 680 1000 300 180 65 600 4
WLDH-500 2510 800 1275 500 300 65 900 7.5
WLDH-1000 2980 940 1380 1000 600 48 1300 I1
WLDH-1500 3160 980 1570 1500 900 48 1600 15
WLDH-2000 3360 1040 1625 2000 1200 35 2000 15
WLDH-3000 3640 1250 1850 3000 1800 35 2600 18.5
WLDH-4000 4100 1440 1960 4000 2400 33 3800 22
WLDH-5000 4320 1540 2070 5000 3000 27 4800 30
WLDH-6000 5000 1650 2350 6000 3600 27 5500 37
WLDH-8000 5000 1750 2400 8000 4800 22 6500 45
WLDH-10000 5600 2140 2750 10000 6000 22 8000 55
WLDH-15000 5800 2250 3075 15000 9000 14 9000 75
WLDH-20000 6170 2450 3500 20000 12000 14 11000 90
WLDH-30000 6370 2800 3700 30000 18000 12 14000 110

Our Certification

With advanced technology and continuous R & D investment, our products have obtained a large number of patent certificates , CE certificate etc.
