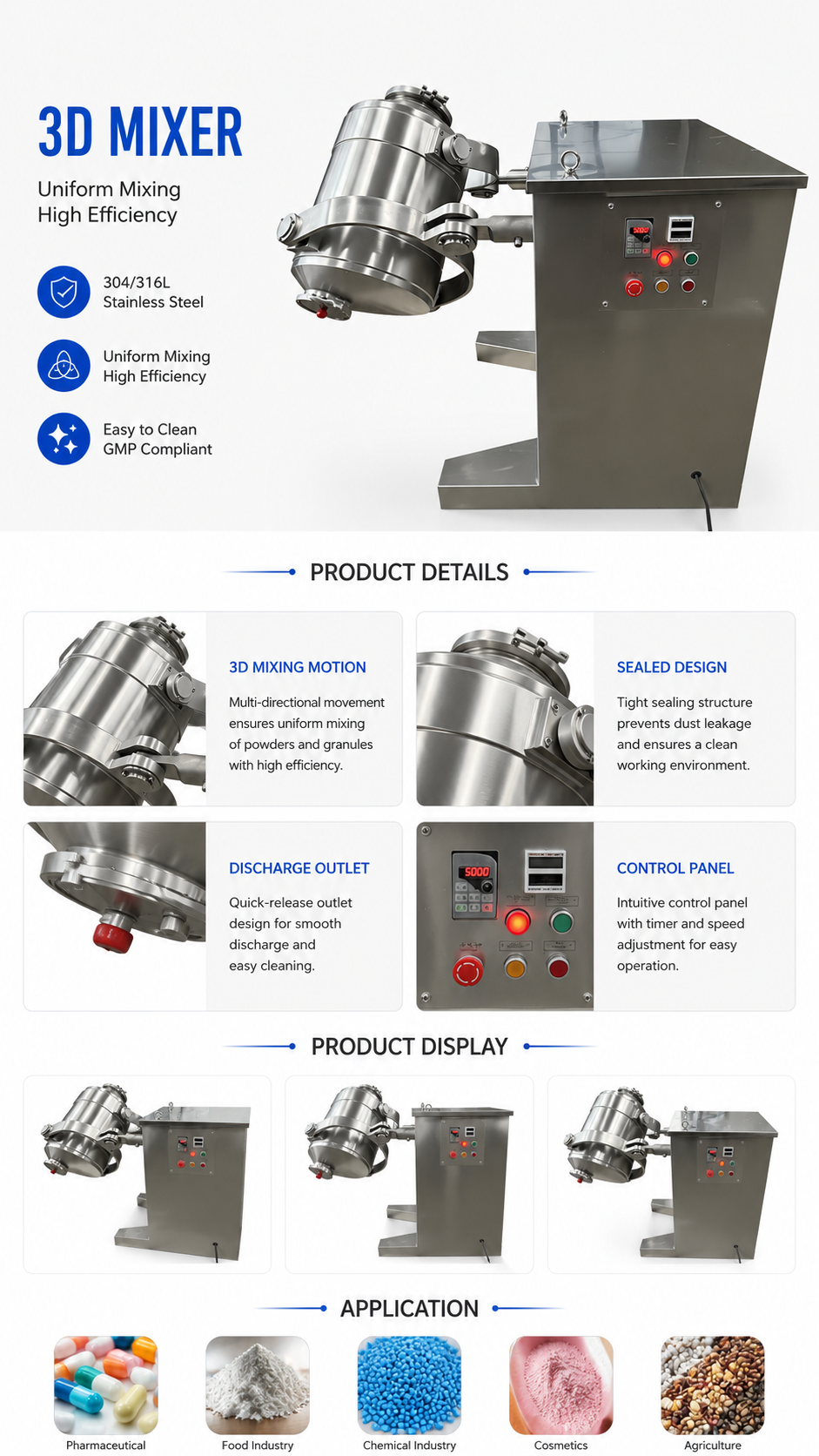

SYH Series Three Dimensional Mixer

SYH series three dimensional mixer is widely used in pharmaceutical, chemical, food, light industry and other industries and scientific research units. The machine can mix powder or granular material with good fluidity very evenly. When THE machine is working because the mixing bucket has MULTI-direction operation, the flow and diffusion of various materials in the mixing process are accelerated, and the phenomenon of specific gravity segregation and accumulation of materials caused by centrifugal force in general mixing machine is avoided, so the excellent mixing effect can be achieved.

Working Principle

The charging cylinder is driven by the driving axis, and the composite motion such as rotation and rolling is repeated, which makes the material move along the cylinder in the circumferential direction, radial direction and axial direction, so as to realize the mutual flow, diffusion, accumulation and doping of various materials, and achieve the purpose of uniform mixing.

Main Features :

• The equipment does not need to set a foundation, easy installation and maintenance, long service life.
• Good mixing effect, short mixing time, mixing uniformity up to 99.5%;
• The loading coefficient is up to 85%, which is more than 2 times that of the ordinary rotary mixer.
• Low height, small rotation space, building generally do not need to jump;
• Eccentric design of feeding end cone of mixing bucket body, feeding without dead Angle, no residue, easy to clean, in line with GMP requirements;
• SYH series multi-direction motion mixing function in low speed start, stable operation under rated speed, timing, speed down stop.

Working Scheme of Vacuum Feeding System :
