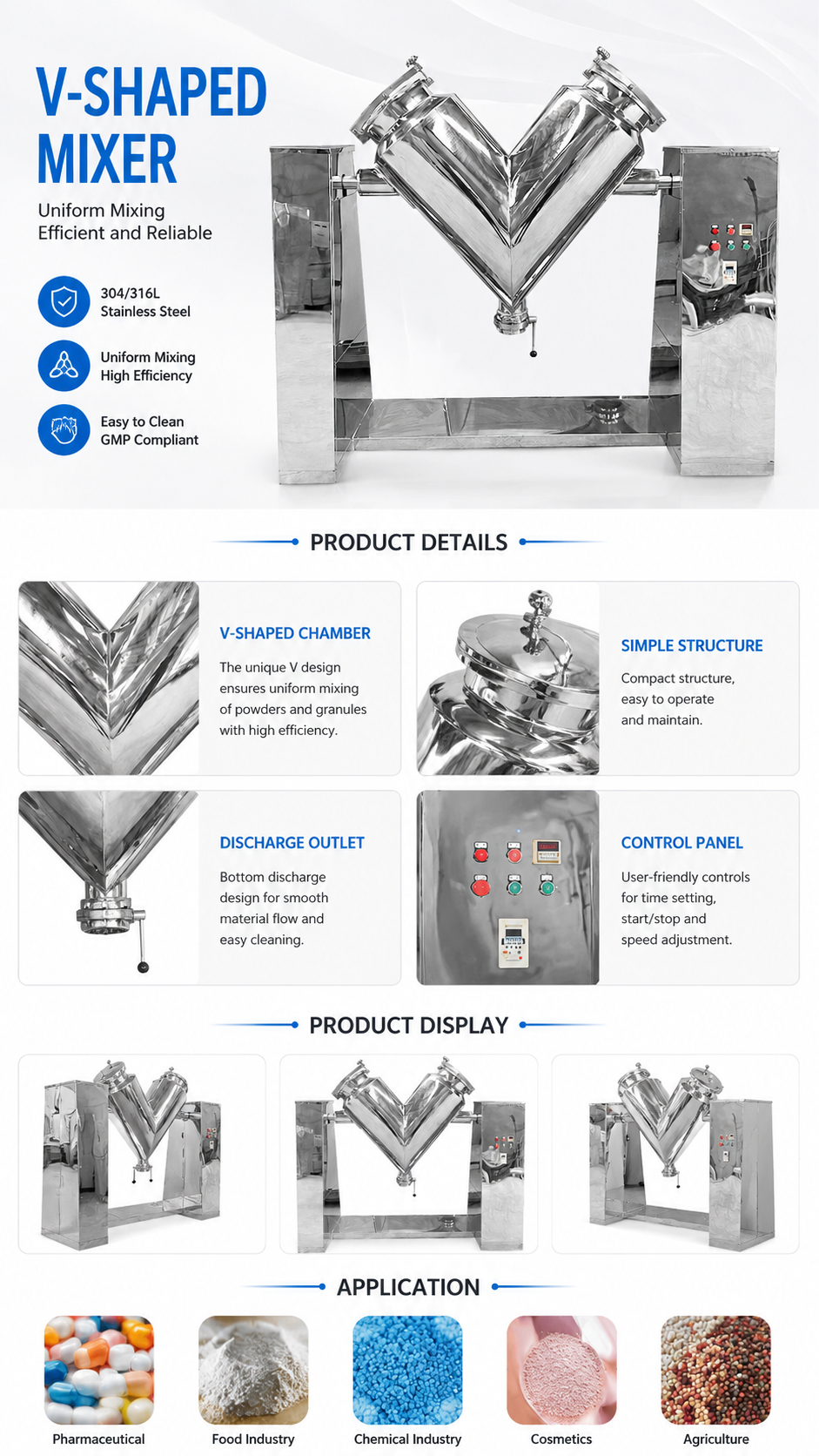

V-type mixer is a kind of high efficiency asymmetric mixer, it is suitable for chemical, food, medicine, feed, ceramics, metallurgy and other industries of powder or grain material mixing. The machine structure is reasonable, simple, closed operation, convenient in and out of the material, (manual or vacuum feeding) cylinder made of stainless steel material, easy to clean, is the enterprise’s basic equipment.
V-type mixer is mainly composed of mixture tube, frame, transmission system, electrical system components, such as it is to use two asymmetrical cylinder, the gravity mix, material within the cylinder constantly gather, scattered, usually after about 15 minutes time mixing, make two or more fully mixing powder, and granular materials, especially suitable for two or over two kinds of material proportion, The mixing uniformity is more than 99%.
Model | Dimension (MM) | Total Volume | Max.loading capacity | Rotation Speed | Weight | Power | ||
L | W | H | L | KG | Rpm/min | G | KW | |
VH-50 | 1300 | 700 | 1300 | 50 | 25 | 3-12 | 150 | 0.75 |
VH-100 | 1500 | 880 | 1500 | 100 | 50 | 3-12 | 200 | 1.1 |
VH-200 | 1800 | 1300 | 1800 | 200 | 100 | 3-12 | 300 | 1.5 |
VH-300 | 1900 | 1360 | 1900 | 300 | 150 | 3-12 | 500 | 2.2 |
VH-500 | 2500 | 1600 | 2250 | 500 | 250 | 3-12 | 800 | 3 |
VH-1000 | 3050 | 2190 | 2500 | 1000 | 500 | 3-12 | 1200 | 4 |
VH-1500 | 3350 | 2350 | 2980 | 1500 | 750 | 3-12 | 1500 | 5 |
VH-2000 | 3800 | 2600 | 3050 | 2000 | 1000 | 3-12 | 1900 | 7.5 |
VH-2500 | 3990 | 2850 | 3200 | 2500 | 1250 | 3-12 | 2400 | 11 |
VH-3000 | 4650 | 3050 | 3400 | 3000 | 1500 | 3-12 | 3100 | 15 |
VH-4000 | 4950 | 3250 | 3600 | 4000 | 2000 | 2-8 | 4200 | 18.5 |
